General Specifications

Platform: Boxed Processor

Product Family: AMD Ryzen™ Processors

Product Line: AMD Ryzen™ 5 Desktop Processors with Radeon™ Vega Graphics

# of CPU Cores: 4

# of Threads: 8

Max. Boost Clock: Up to 4.2GHz

Base Clock: 3.7GHz

Total L1 Cache: 384KB

Total L2 Cache: 2MB

Total L3 Cache: 4MB

Default TDP: 65W

AMD Configurable TDP (cTDP): 45-65W

Processor Technology for CPU Cores: 12nm FinFET

Unlocked for Overclocking: Yes

CPU Socket: AM4

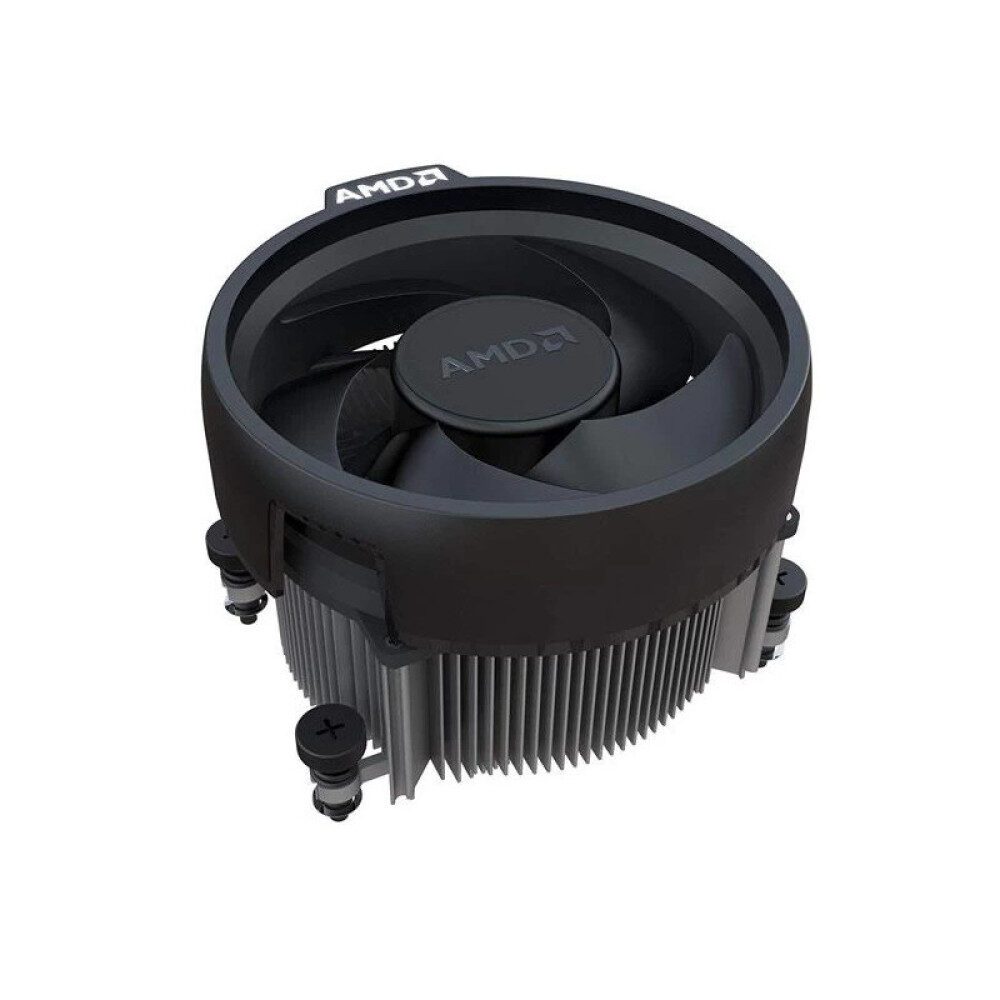

Thermal Solution: Wraith Spire

Max. Operating Temperature (Tjmax): 95°C

OS Support: Windows 10 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

Connectivity

PCI Express® Version: PCIe® 3.0

System Memory Type: DDR4

Memory Channels: 2

Graphics Capabilities

Graphics Model: Radeon™ RX Vega 11 Graphics

Graphics Core Count: 11

Graphics Frequency: 1400 MHz

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
