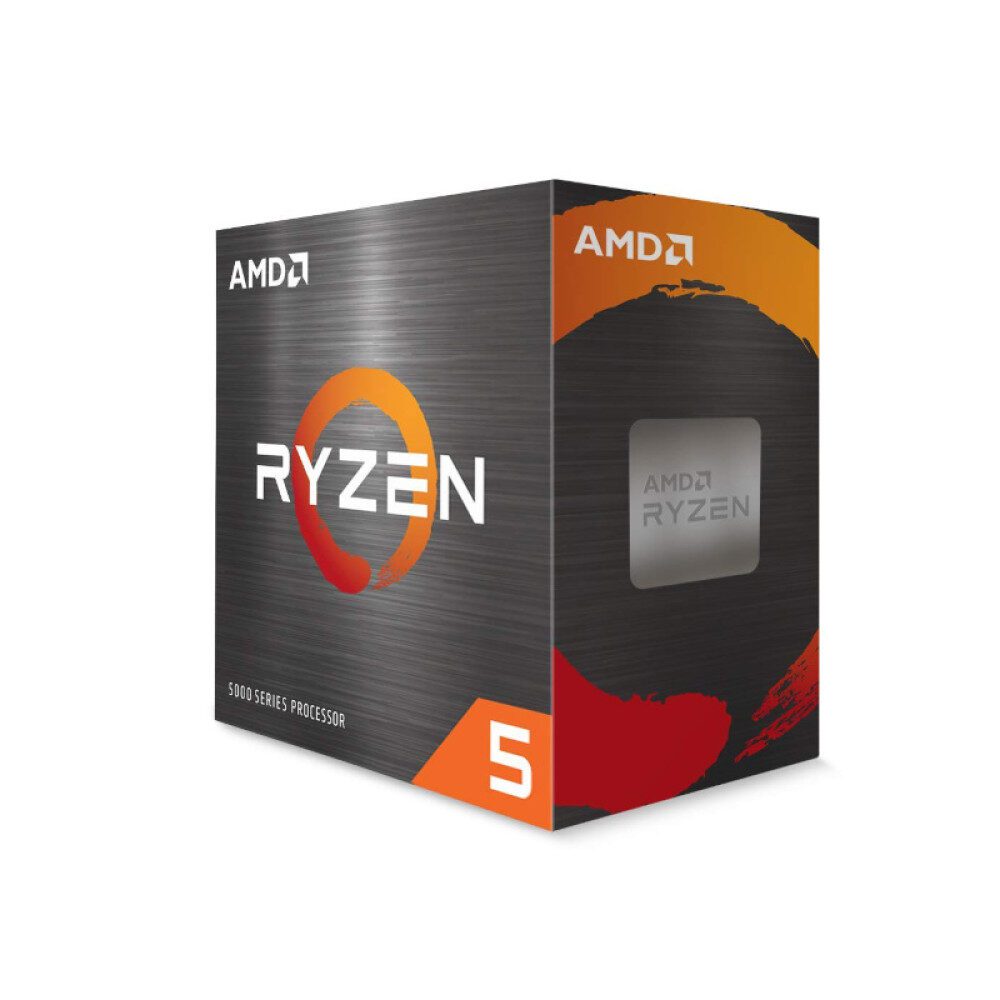

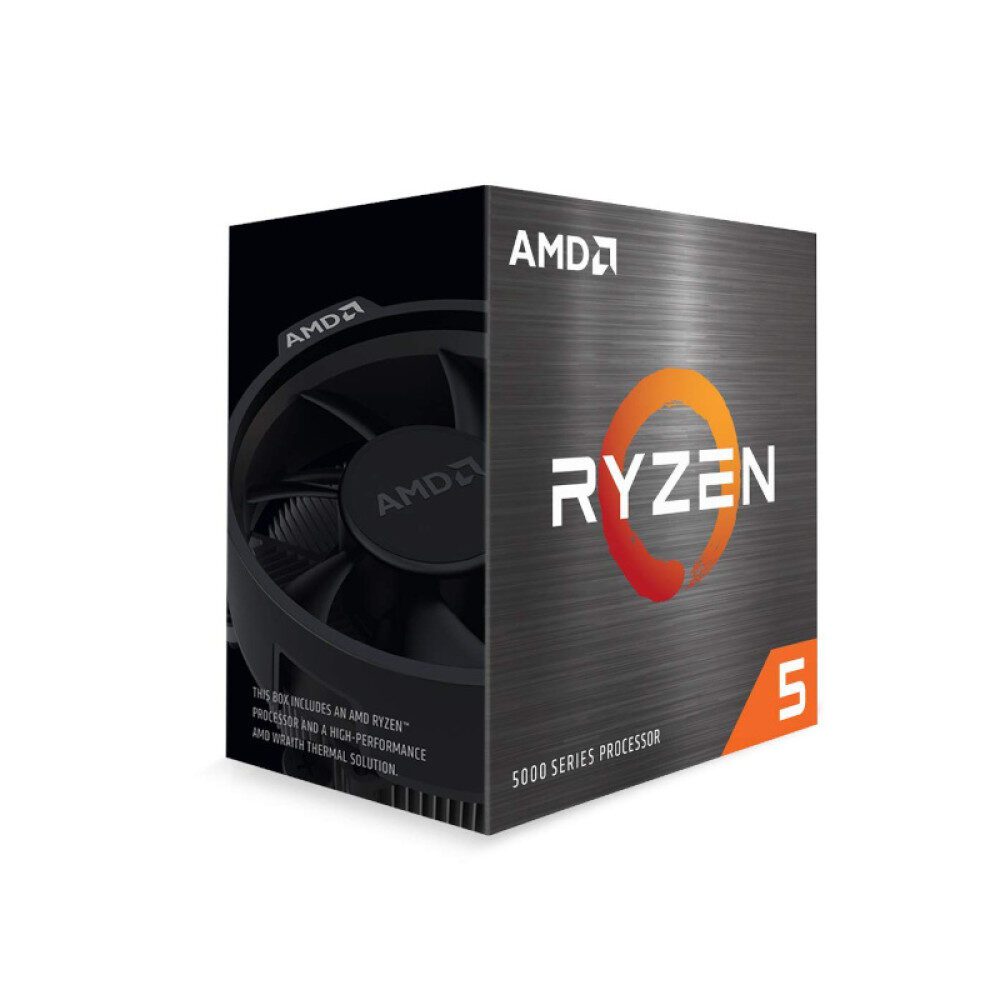

AMD Ryzen 5 5500 Processor (6 Cores, 12 Threads, Max. Boost Clock Up To 4.2GHz, AM4 Socket and 19MB Cache)

General Specifications

Platform = Desktop

Product Family = AMD Ryzen™ Processors

Product Line = AMD Ryzen™ 5 Desktop Processors

# of CPU Cores = 6

# of Threads = 12

Max. Boost Clock = Up to 4.2GHz

Base Clock = 3.6GHz

Total L1 Cache = 384KB

Total L2 Cache = 3MB

Total L3 Cache = 16MB

Default TDP = 65W

Processor Technology for CPU Cores = TSMC 7nm FinFET

Unlocked for Overclocking = Yes

CPU Socket = AM4

Socket Count = 1P

Thermal Solution (PIB) = AMD Wraith Stealth

Max. Operating Temperature (Tjmax) = 90°C

Launch Date = 4/4/2022

OS Support = Windows 11 – 64-Bit Edition, Windows 8.1 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit, *Operating System (OS) support will vary by manufacturer.

Connectivity

PCI Express® Version = PCIe 3.0

System Memory Type = DDR4

Memory Channels = 2

System Memory Specification = Up to 3200MHz

Max Memory Speed

2x1R = DDR4-3200

2x2R = DDR4-3200

4x1R = DDR4-2933

4x2R = DDR4-2667

Product IDs

Product ID Boxed = 100-100000457BOX

Product ID Tray = 100-000000457

Graphics Capabilities

Integrated Graphics = No

Graphics Model = Discrete Graphics Card Required

Key Features

Supported Technologies

AMD StoreMI Technology

AMD “”Zen 3″” Core Architecture

AMD Ryzen™ VR-Ready Premium

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
