Description

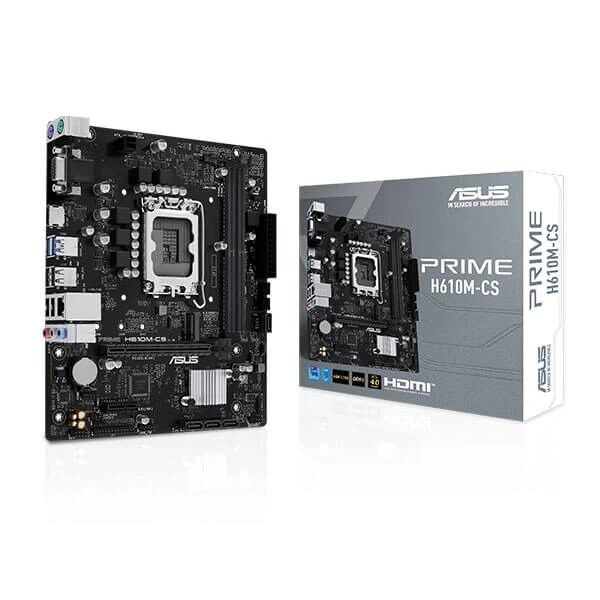

Asus Prime H610M-CS Intel H610 (LGA 1700) micro-ATX motherboard with DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI, VGA, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, LPT header, TPM header
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks that perfectly match your work style to maximize productivity.
Intelligent Control
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak, and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Search Function
Quickly and easily find the option or setting you need.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings—all to help you get your rig up and running quickly.
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.
EZ XMP
Improve DRAM performance with one click.
COOLING
Prime H610 series is engineered with various hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Cooler by Design
Multiple Temperature Sources
Each header can dynamically reference the thermal sensor. UEFI BIOS allows you to map the temperature of CPU and motherboard.
PERFORMANCE
Prime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Storage
M.2 slot (up to 32 Gbps)
PRIME H610M-CS offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
* Actual transmission speeds will be lower than the theoretical maximum speed.
PCIe® 4.0
Prime H610 motherboards are designed specifically for 13th & 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
USB 3.2 Gen 1 Type-A
Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.
CUSTOMIZATION
Prime H610 series adds nuanced details that improve every experience. Exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.
USBGuard
120% higher overvoltage protection
Exclusive USBGuard technology detects voltage changes in real time, and has 120%-higher overvoltage tolerances than standard to ensure stable and reliable input voltages — minimizing the risk of damage, and protecting your equipment.
Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
Audio Shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Separate Layer for Left and Right Tracks
Personalization
Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. This software even features dedicated product registration and highlight to help you stay in touch with the ASUS community.
DIY Friendly
Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Its fortified design, anchored to the motherboard by a special hook, provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
ASUS Prime motherboards have strengthened solder points around the PCIe and DIMM pins.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DIGI+ VRM
Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
Stainless-Steel Back I/O
3X corrosion resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a three times longer lifespan than ordinary panels.
LANGuard
Pumped-up throughput 2.5X higher surge tolerance
ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
1000+
Compatible devices and components
The Prime H610 series provides superior compatibility with thousands of components, and our Qualified Vendor List (QVL) identifies memory compatibility, giving you more choices for worry-free PC-building experiences.
8000+
Validation hours
Every ASUS motherboard undergoes more than 8,000 hours of stringent tests, including burn-in, environmental, compatibility, software, and safety tests, to confirm its durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
Temperature and humidity tests
Ensures components withstand extreme conditions.
Thermal measurement tests
Ensures that the system remains cool and stable under the heaviest loads.
Insertion tests
Every port and connector is put through repeated installation cycles.
Aging tests
Up to 48-hour aging test ensures reliability.
Power-consumption tests
Checked for world-class energy efficiency.
Temperature and DC margin tests
Ensures that the motherboard can cope with voltage fluctuations caused by varying temperatures.
Thermal-shock tests
Ensures the ability to survive temperature changes during transportation.
Non-operation shock tests
Built to withstand jolts that may occur during shipping.
Burn-in tests
Every component is checked to ensure flawless operation.
Installation tests
Connector placement is double-checked to ensure hassle-free installation.
Drop tests
Drop tests from various heights ensure durability.
Salt and spray tests
Tested for I/O reliability, prolonged lifespan, and rust resistance.
