Description

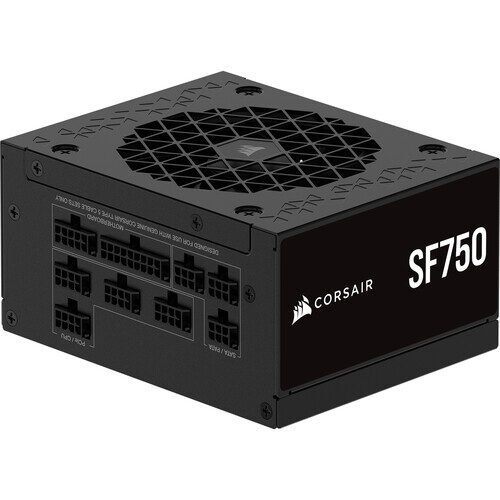

Corsair SF750 80 PLUS Platinum Fully Modular 750W SFX Power Supply (Black)
Outfit your next SFF PC with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply for compact, ATX 3.1 compliant, fully modular Platinum power.
Includes
- 80 PLUS Platinum rated efficiency
- ATX 3.1 compliant, supporting PCIe 5.1
- Fully modular, Type-5 Micro-Fit PSU connectors
- 92mm PWM cooling fan with Zero RPM mode
SF Series SF750 Fully Modular 80 PLUS Platinum SFX Power Supply
Outfit your next SFF PC with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply for compact, ATX 3.1 compliant, fully modular Platinum power.
Includes
- 80 PLUS Platinum rated efficiency
- ATX 3.1 compliant, supporting PCIe 5.1
- Fully modular, Type-5 Micro-Fit PSU connectors
- 92mm PWM cooling fan with Zero RPM mode
Â
SMALL AND MIGHTY
50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your SFF PC, even under high-stress conditions.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
Â
ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance.
PCIe 5.1 12V-2×6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
QUIET OPERATION WITH ZERO RPM MODE
FULLY MODULAR TYPE 5 MICRO-FIT CONNECTORS
SEVEN-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Â
SF750 POWER TABLE
| MODEL | RPS0205 | |
|---|---|---|
| Part No. | 75-006069 | |
| AC Input Rating | ||
| AC Input | 100–240V | |
| Input Current | 10A-5A | |
| Frequency | 47~63Hz | |
| Max Load | Max Output | |
| +3.3V | 20A | 130W |
| +5V | 20A | |
| +12V | 62.5A | 750W |
| +5VSB | 3A | 15W |
| TOTAL POWER | 750W |
SF750 CABLE LISTING
| QTY | Cable | Connectors per cable |
Total connectors |
Connector spacing |
Total length |
Cable Type |
|---|---|---|---|---|---|---|
| 1 | Modular ATX Cable (24-pin)
|
1 | 1 | – | 300mm (± 10mm) |
Individually Sleeved |
| 2 | EPS / ATX 12V 8-pin (4+4)
|
1 | 2 | – | 400mm (± 10mm) |
Individually Sleeved |
| 2 | PCIe 8-pin (6+2)
|
1 | 2 | – | 400mm (± 10mm) |
Individually Sleeved |
| 1 | 12VHPWR (12+4) pin
|
1 | 1 | – | 400mm (± 10mm) |
Individually Sleeved |
| 1 | SATA (4 Straight SATA)
|
4 | 4 | 100mm, 115mm, 115mm, 115mm |
445mm (± 10mm) |
Individually Sleeved |
| 1 | SATA (4 Right SATA)
|
4 | 4 | 100mm, 115mm, 115mm, 115mm |
445mm (± 10mm) |
Individually Sleeved |
| 1 | PATA (3 PATA)
|
3 | 3 | 100mm, 115mm, 115mm |
330mm (± 10mm) |
Individually Sleeved |
