Description
Features:
- PCIe Gen4 x4
- ax. read/write speed: 7,400/6,800 MB/s
- Capacity: 2TB
- Heatsink provides effective cooling
- Supports latest Intel and AMD platforms
- Works with PS5 as expanded storage, click here for details
- 5-years warranty
Redefining the Speed of Creativity
LEGEND 960 MAX supports the latest PCIe Gen4 x4 interface, which meets the NVMe 1.4 standard. It offers mind-blowing creativity and supports the latest Intel and AMD platforms, turning the device into an invincible powerhouse.
Ultimate Performance for Creators
LEGEND 960 MAX delivers a sequential read and write speed of 7,400/6,800MB per second, which is up to 4 times faster than a standard PCIe Gen3 SSD and 13 times faster than a SATA SSD. It is backward compatible with PCIe 3.0 and made for professionals to challenge the impossible.

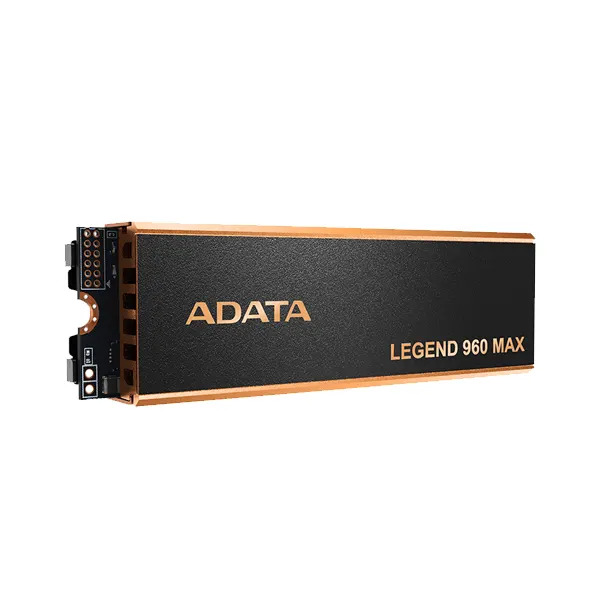

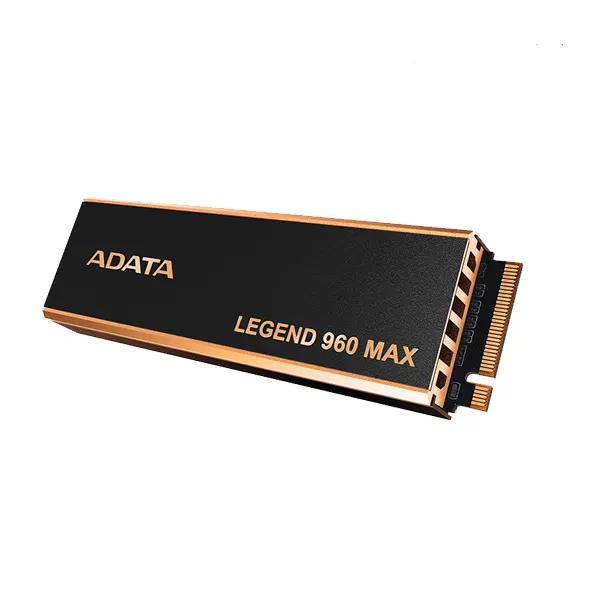

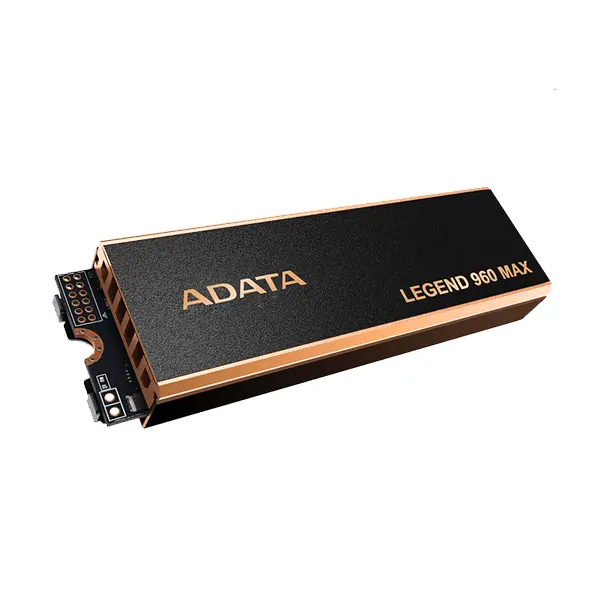

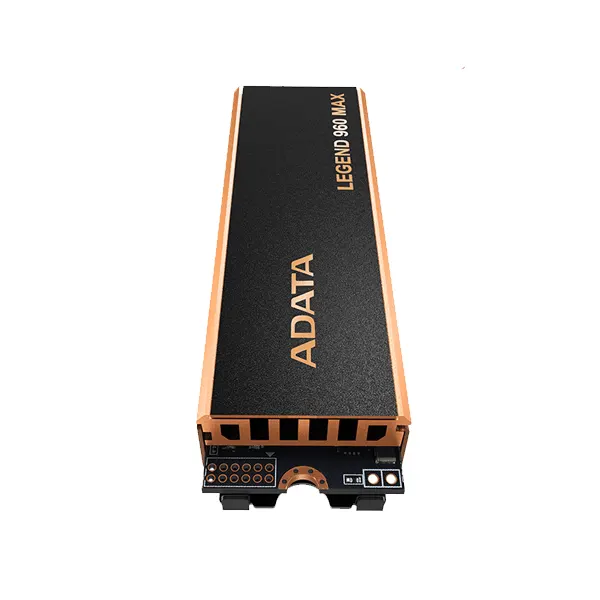

Max Heat Dissipation, Max Stability
LEGEND 960 MAX’s cooling system uses aluminum alloy to thoroughly cover the hard drive to maximize heat dissipation. With multi-layered cooling fins, it allows cool air to flow in along the metal case and push away hot air. The distinctive convection cooling design can reduce the temperature of SSD by 40% and bring out stable performances.
A Perfect Partner for PS5
LEGEND 960 MAX’s size conforms to the slot design and can be installed in PS5 consoles as expanded storage, taking PS5’s performance to the next new level. With LEGEND 960 MAX, you can enjoy AAA Games with no lag and show the world what you’ve got!
Specifications:
| Model Number | ALEG-960M-2TCS |
| Capacity | 2TB |
| Form factor | M.2 2280 |
| NAND Flash | 3D NAND |
| Controller | SMI SM2264 |
| Dimensions (L x W x H) | 80.6 x 23.2 x 10.65mm / 3.17 x 0.91 x 0.42inch(with heat sink) 80 x 22 x 3.3mm / 3.15 x 0.87 x 0.13inch (without heat sink) |
| Weight | 36.6g /1.3oz (with heat sink) 7.3g /0.26oz (without heat sink) |
| Interface | PCIe Gen4 x4 |
| Sequential Read (Max) | Up to 7,400MB/s |
| Sequential Write (Max) | Up to 6,800MB/s |
| 4KB Random Read IOPS(Max) | Up to 750K |
| 4KB Random Write IOPS(Max) | Up to 630K |
| Operating temperature | 0°C – 70°C |
| Storage temperature | -40°C-85°C |
| Shock resistance | 1,500G/0.5ms |
| MTBF | 1,500,000 hours |
| Warranty | 5-Year limited warranty |
| Note | Features, Price, Specifications are subject to change without notice. Images used for representation purpose only |
