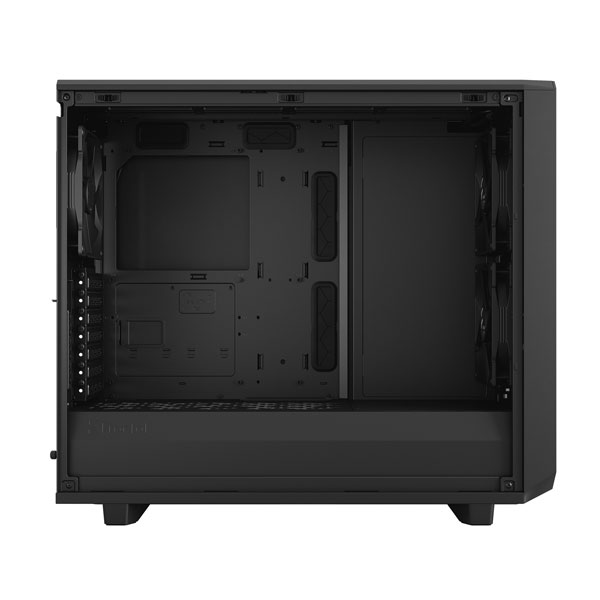

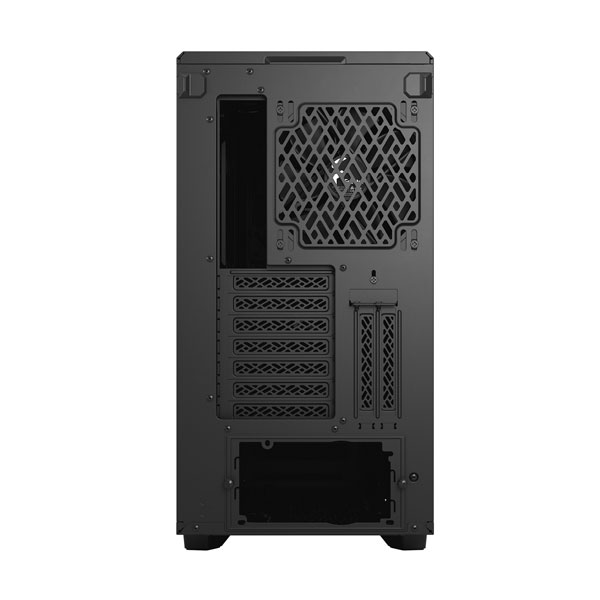

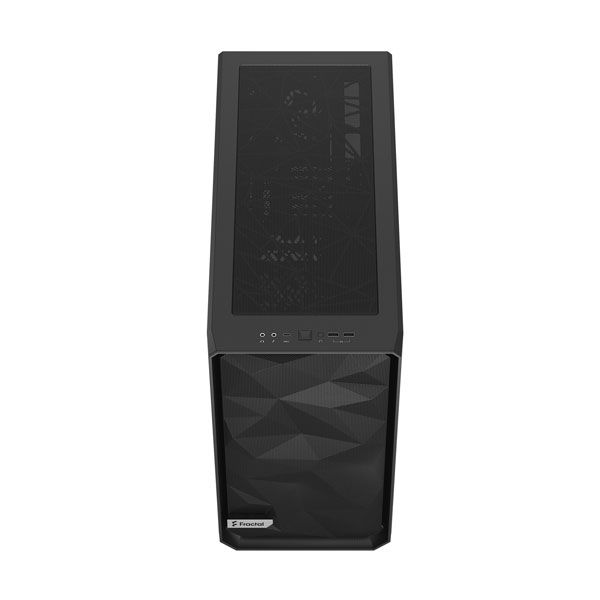

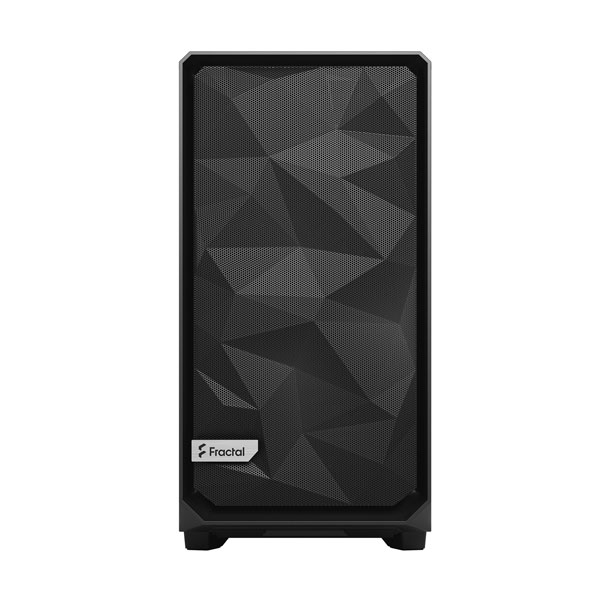

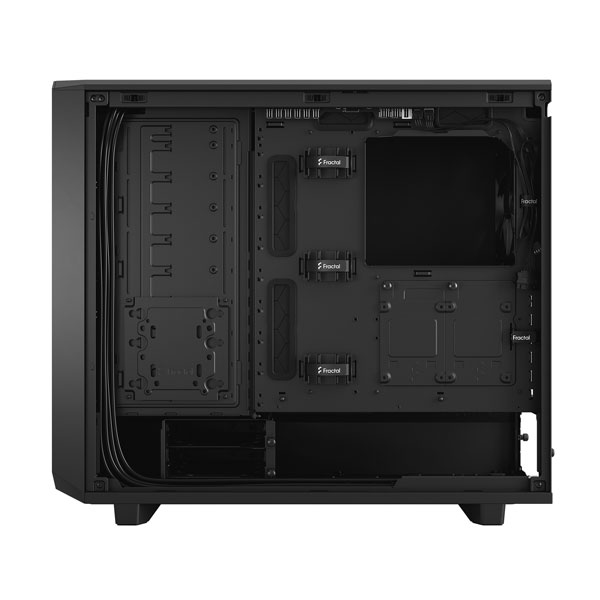

Fractal Design Meshify 2 Solid E-ATX Mid Tower Case
Fractal Design Meshify 2 Solid E-ATX Mid Tower Case
This product is currently out of stock.
Lian Li Lancool 207 Digital ATX Mid Tower Case
₹12,290.00
₹13,999.00
You saved ₹1,709.00
Add to Cart
Fractal Design USB-C 10Gbps Cable - Model D (Black)
₹2,090.00
₹2,323.00
You saved ₹233.00
View Product
Fractal Design Torrent Compact TG Light Tint RGB (E-ATX) Mid Tower Cabinet (Black)
₹25,090.00
₹28,674.00
You saved ₹3,584.00
View Product
Fractal Design Aspect 12 Black 120mm RGB Cabinet Fan (Single Pack)
₹2,040.00
₹2,490.00
You saved ₹450.00
View Product

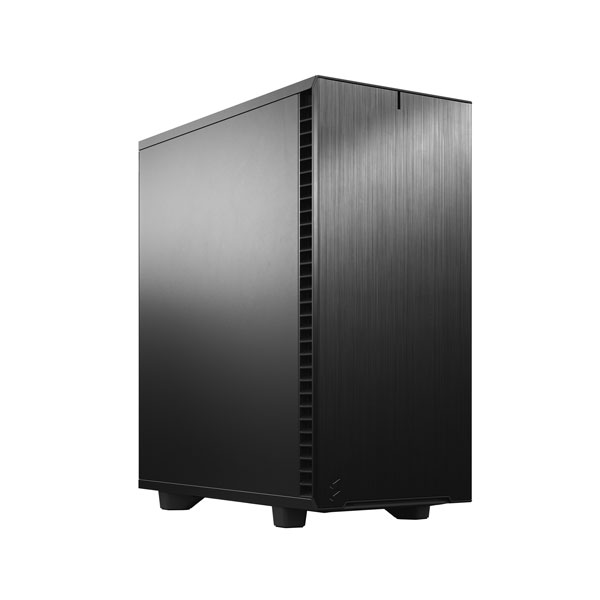

Fractal Design Define 7 XL Solid (E-ATX) Full Tower Cabinet (Black)
₹31,690.00
₹36,580.00
You saved ₹4,890.00
View Product
Fractal Design North Chalk TG Clear (ATX) Mid Tower Cabinet (White)
₹21,449.00
₹22,457.00
You saved ₹1,008.00
View Product
Fractal Design Torrent Compact RGB TG Clear Tint (E-ATX) Mid Tower Cabinet (White)
₹25,090.00
₹28,674.00
You saved ₹3,584.00
View ProductFeatures:
The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.
- Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
- Spacious adaptable interior for motherboards up to (and including) 285 mm E-ATX
- Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
Detachable front filter
- New front nylon filter that can be removed for increased airflow
- New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans
Superlative storage
- Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)
- Transformable interior design utilizing a movable wall for enhancing custom builds
- The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount
- Tool-less, top-latching side panels allow quick access while preventing accidental drops
Extremely flexible
- Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout
- Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
- Easily holds large motherboards up to and including 285 mm E-ATX
- Remove the entire top to build and route with zero hindrance
Specifications:
| Model | FD-C-MES2A-01 |
| 3.5""/2.5"" Universal drive mounts | 6 included, 14 positions total + 1 Multibracket |
| Expansion slots | 7 + 2 |
| Total fan mounts | 9x 120/140 mm |
| Top fan | 3x 120/140 mm |
| Bottom fan | 2x 120/140 mm |
| Fixed velcro straps | Yes |
| Captive thumbscrews | HDD, SSD and PSU brackets |
| Right side panel | Steel |
| Dedicated 2.5"" drive mounts | 2 included, 4 positions total |
| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
| Front fan | 3x 120/140 mm (2x Dynamic X2 GP-14 included) |
| Rear fan | 1x 120/140 mm (1x Dynamic X2 GP-14 included) |
| Dust filters | Top, front and bottom |
| Cable routing grommets | Yes |
| Left side panel | Steel |
| Compatibility | |
| Motherboard compatibility | E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX |
| PSU max length | 250 mm (with HDD cage installed) |
| CPU cooler max height | 185 mm |
| Top radiator | Up to 360/420 mm |
| Bottom radiator | Up to 240/280 mm |
| Power supply type | ATX |
| GPU max length | Open layout: 476 mm (451 mm w/ front fan) - Storage layout: 298 mm |
| Front radiator | Up to 360/280 mm |
| Rear radiator | 120 mm |
| Cable routing space | 30 mm |
| Dimensions | |
| Case dimensions (LxWxH) | 542 x 240 x 474 mm |
| Package dimensions (LxWxH) | 634 x 542 x 324 mm |
| Gross weight | Solid: 12.8 kg TG: 13.2 kg |
| Case dimensions w/o feet/protrusions/screws | 541 x 240 x 454 mm |
| Net weight | Solid: 10.1 kg TG: 10.5 kg |
| Volume | 58.95 liters |
