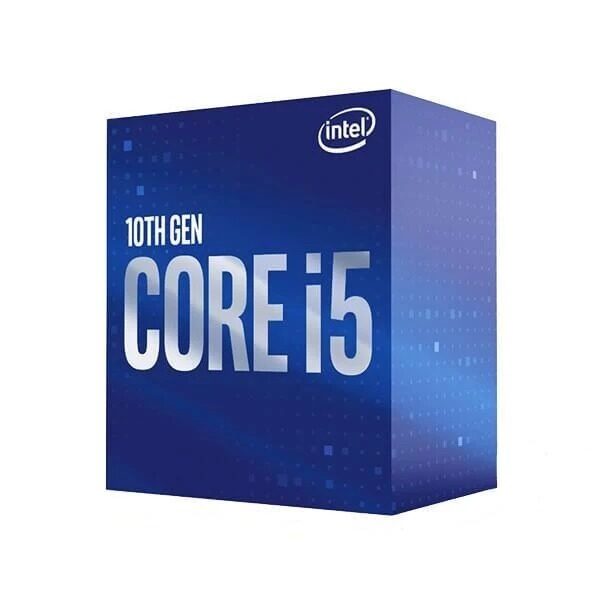

Intel Core i5-10500 LGA1200 Desktop Processor (4.50 GHz / 6 Cores / 12 Threads)

The Intel Core i5-10500 processor is a powerful 6-core, 12-thread desktop processor designed for mainstream users who demand high performance and efficiency. It is part of Intel’s 10th generation Comet Lake-S processor family, which is based on the 14nm++ manufacturing process.

Key Features

• 6 cores, 12 threads: The i5-10500 features 6 physical cores and 12 threads, allowing it to handle demanding workloads with ease.

• Up to 4.5 GHz Turbo Boost: The i5-10500 can automatically boost its clock speed up to 4.5 GHz for demanding tasks.

• 12 MB Intel Smart Cache: The i5-10500 includes 12 MB of Intel Smart Cache, which helps to improve performance by reducing latency and improving data access speeds.

• Intel Turbo Boost Technology 2.0: Intel Turbo Boost Technology 2.0 dynamically increases the processor’s clock speed when only a subset of cores is being used, allowing for improved performance when needed.

• Intel Hyper-Threading Technology: Intel Hyper-Threading Technology enables each of the processor’s 6 cores to handle up to 2 threads at a time, effectively doubling the number of threads to 12.

• PCI Express 3.0 support: The i5-10500 supports up to 16 PCI Express 3.0 lanes, providing ample bandwidth for high-speed graphics cards and other peripherals.

• Integrated graphics: The i5-10500 includes Intel UHD Graphics 630 integrated graphics, which can be used for basic tasks such as web browsing and video playback.

• Socket LGA1200: The i5-10500 uses Socket LGA1200, which is compatible with a wide range of motherboards.

• 65W TDP: The i5-10500 has a thermal design power (TDP) of 65W, making it a relatively energy-efficient processor.

Performance

The Intel Core i5-10500 processor offers significant performance improvements over its predecessors. It is a great choice for users who need a powerful processor for gaming, video editing, photo editing, and other demanding tasks.

In benchmarks, the i5-10500 consistently outperforms the previous generation i5-9400 processor. For example, in the Cinebench R20 benchmark, the i5-10500 scores an average of 3,900 points, compared to 3,200 points for the i5-9400.

Intel Turbo Boost

Intel Turbo Boost Technology dynamically increases the processor’s frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Intel OS Guard

Intel Device Protection Technology with OS Guard stop system hijackers from running any operation, any instruction when the system is in supervisor mode. Prvent any instruction, I/O operation initiated, area of memory being accessed with Intel OS Guard.

Intel Boot Guard

Intel Device Protection Technology with Boot Guard helps protect the system’s pre-OS environment from viruses and malicious software attacks. The feature prevents the computer from running firmware images not released by the system manufacturer.
