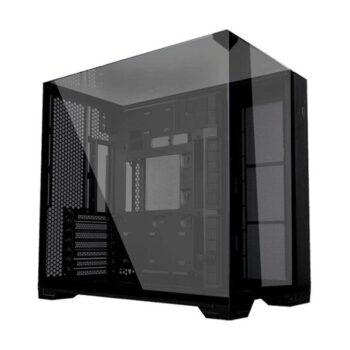

LIAN LI O11 Vision ATX Mid Tower Cabinet (Black)

UNOBSTRUCTED HARDWARE SHOWCASE

Display your style and showcase the power of your PC with the O11 Vision, a chassis that features three sides of tempered glass panels without any columns or pillars for the ultimate unobstructed view of the system.

BEAUTY IN EVERY ANGLE

Just like the classic O11 series, O11 Vision is available in black and white, crafted from the finest materials, and looks stunning from every angle.

• Brushed Aluminum
• 3mm Tinted Top Tempered Glass
• Inner Corner Silkscreen
• 4mm Tinted Side and Front Tempered Glass
• Black Coated Mesh Panel

• Aluminum with White Powder Coating
• 3mm Clear Top Tempered Glass
• Outer Corner White Silkscreen
• 4mm Clear Side and Front Tempered Glass
• White Coated Mesh Panel

BALANCE BETWEEN COOL AND CLEAR

The O11 Vision not only boasts a striking appearance but also doesn’t compromise on cooling capabilities thanks to its 27mm tall feet and hollowed out bottom fan bracket with 13mm elevation, ensuring ample airflow intake within the chassis.Offers support for a maximum of 2 × 360 + 1 × 240 radiators, ensuring efficient thermal control.

SEAMLESS BUILD PROCESS

Every bracket and panels are designed for modular and toolless removal, simplifying the build process and allowing for customizable configuration.

Note: The front glass panel is also removable but we do not suggest doing so during the normal installation process.

SOLID STRUCTURE

Strong structural support is designed with robust keys rated for 35kg of force, ensuring unwavering stability for all three side glass panels

TWO-WAYS REVERSIBLE SIDE FAN BRACKET

Inner Scenario

For 75mm space in the main chamber

Outer Scenario

Optimized for a push-pull configuration

REMOVABLE BOTTOM FAN BRACKET AND DUST FILTER

Able to remove the fan bracket to install the radiator or fan with ease and clean the dust filter.

ADJUSTABLE MOTHERBOARD TRAY

Able to remove the fan bracket to install the radiator or fan with ease and clean the dust filter.

EASY TO ACCESS

The front I/O ports are strategically positioned at the bottom of the chassis, ensuring convenient access when the case is placed on a table, all while showcasing its aesthetic appeal.

THE CLEAN CABLE MANAGEMENT SOLUTION

To maintain the most aesthetic view in the main chamber, O11 Vision is designed with cable management in mind in the second chamber.

Flexible Cable Clips

Features 2 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.

Bulky cables can be securely held in the cable holder.

Thinner cables can be managed using Velcro straps.

Extended Room

The PSU mounting bracket protrudes 15mm from the rear of the case, allowing extra space for cable management. Additionally, a cable tie point along the rear of the case helps keep the rear I/O cables tidy.

MULTI-FUNCTION STORAGE BRACKET

Offering the flexibility usage of the bracket for cable routing or a drive installation.

Cable Management Bar

2.5” SSD × 3
The removable cable management bar helps tidy up your system and give it a better aesthetic.

Individual Drive Cage

2.5” SSD × 2 or 3.5” HDD × 2
Each drive cage can be removed to gain space for the cable routing.

COVERING THE GAP

Included 2 silicone covers for low mode configuration to provide a clean look for cable management.

DISPLAY OF YOUR GPU

(Optional Accessory – VG4-4,VG4-4V2)

LIAN LI’s O11 Vision, compatible with its universal vertical GPU kit, offers a professional and attractive build aesthetic through vertical GPU mounting.
