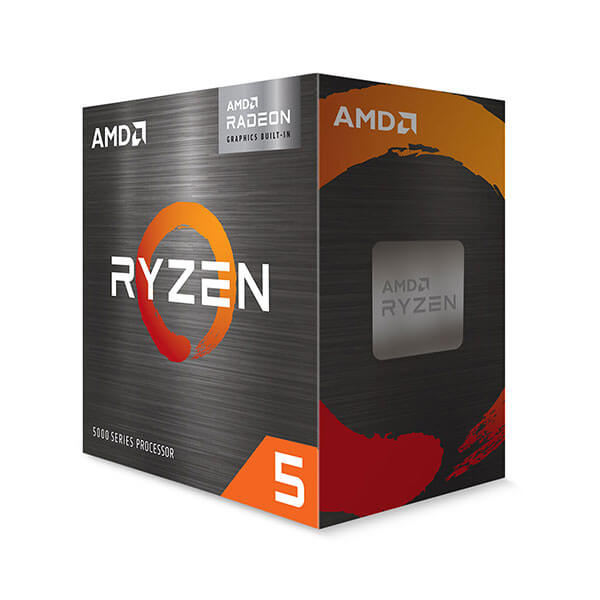

Model	AMD Ryzen 5 5500GT
Platform	Boxed Processor
Market Segment	Mainstream Desktop
Product Family	AMD Ryzen™ Processors
Product Line	AMD Ryzen™ 5 5000 G-Series Desktop Processors with Radeon™ Graphics
Consumer Use	Yes
Commercial Use	No
Former Codename	""Cezanne""
Architecture	""Zen 3""
# of CPU Cores	6
Multithreading (SMT)	Yes
# of Threads	12
Max. Boost Clock	Up to 4.4GHz
Base Clock	3.6GHz
L1 Cache	384KB
L2 Cache	3MB
L3 Cache	16MB
Default TDP	65W
AMD Configurable TDP (cTDP)	45-65W
Processor Technology for CPU Cores	TSMC 7nm FinFET
CPU Compute Die (CCD) Size	180mm²
Package Die Count	1
Unlocked for Overclocking	Yes
CPU Socket	AM4

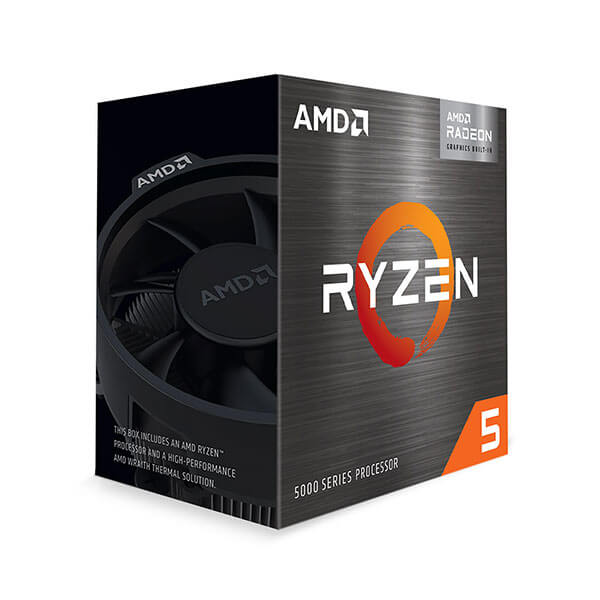

Thermal Solution (PIB)	AMD Wraith Stealth
Thermal Solution (MPK)	AMD Wraith Stealth
Max. Operating Temperature (Tjmax)	95°C
*OS Support	Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer.
Connectivity
PCI Express® Version	PCIe® 3.0
NVMe Support	Boot, RAID0, RAID1, RAID10
System Memory Type	DDR4
Memory Channels	2
Max. Memory	128GB
System Memory Subtype	UDIMM
Max Memory Speed	2x1R DDR4-3200 2x2R 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667
Graphics Capabilities
Integrated Graphics	Yes
Graphics Model	Radeon™ Graphics
Graphics Core Count	7
Graphics Frequency	1900 MHz
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
