Features:

• 1 x AMD EPYC 7003 series processor support
• 16 x DDR4 3200 Mhz DIMM support
• 2 x M.2 socket support
• 3 x PCIe + 1 x OCP expansion in 1U rack sever

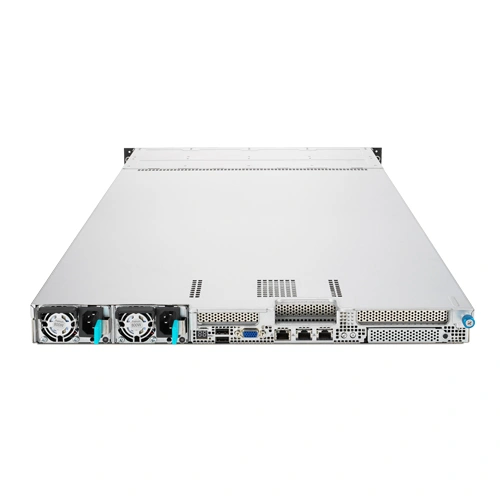

RS500A-E11-RS4U AMD Single-socket, 1U Rack Server

ASUS RS500A-E11-RS4U was designed for general purpose application. With the front 4 hot-swap bays supporting 3.5” and 2.5” drives , RS500A-E11- RS4U is the economic design for rack placement.

AMD EPYC 7003 Series Processors

RS500A-E11 series is built on the AMD platform to deliver incredible performance, and offer more CPU cores powered by AMD EPYC 7003 series processors

Industry-leading memory capability

With 16 x DIMM slots, RS500A-E11 Series supports total 4,096GB memory size. The CPU’s memory controller supports DDR4 3200Mhz memory with 8 channels. We deliver the industry-leading technology of server memory for our customers’ business.

Comprehensive IT infrastructure management solution

ASUS RS500A-E11 features an embedded ASMB10-iKVM (BMC, AST2600) and is bundled with.ASUS Control Center to provide comprehensive out-of-band and in-band management capability.

Processor / System Bus: 1 x Socket SP3 (LGA 4094) / Supports AMD EPYC 7002 & 7003 series processors (up to 280W)

Memory:
Total Slots: 16 (8-channel, 2 DIMM per CPU)
Capacity: Up to 4,096GB
Memory Type: DDR4 3200/ 2933 RDIMM / LRDIMM
Memory Size: 256GB, 128GB, 64GB, 32GB, 16GB

Expansion Slots:

Total Slots: 3+1

Slot Type

1 x PCIe x16 slot (Gen4 x16 link, FH, HL)
1 x PCIe x16 slot (Gen4 x16 link, LP, HL)
1 x PCIe x8 slot (Gen4 x8 link, LP, HL)
1 x OCP3.0 socket (Gen4 x16 link)

Storage Bays: 4 x 3.5” / 2.5"" Hot-swap Storage Bays
(Backplane supports 4 x SATA/SAS/MVMe Devices)

2 x M.2 socket (Gen4 x4 link or SATA mode, up to 22110 module)

Networking:
2 x Gigabit LAN ports (Intel I350-AM2)
1 x dedicated management port (BMC, AST2600)

Security: TPM-SPI Module (optional)
                PFR Module (optional

Rear I/O Ports:
2 x USB 3.2 Gen1 port
1 x VGA port
1 x COM port
2 x Gigabit LAN ports (RJ45)
1 x Management port (RJ45)

Switch/LED:

• Front :
• 1 x Power Button/LED
• 1 x Location Button/LED
• 1 x Message LED
• 2 x LAN LED
• Rear:
• 1 x Power Button/LED
• 1 x Location Button/LED
• 1 x Message LED

Management Solution:
ASUS Control Center Enterprise (in-band)
ASMB10-iKVM (out-of-band/BMC AST2600)

Dimensions: 842.5mm x 449mm x 44mm (1U) / 33.15"" x 17.68"" x 1.73""

Power Supply:
1+1 Redundant 800W 80 PLUS Platinum Power Supply
1+1 Redundant 850W 80 PLUS Platinum Power Supply

Environment:

Operating temperature: 10°C – 35°C
Non operating temperature: -40°C – 70°C
Non-operating humidity: 20% – 90% (Non-condensing)

Warranty: 1 Year
