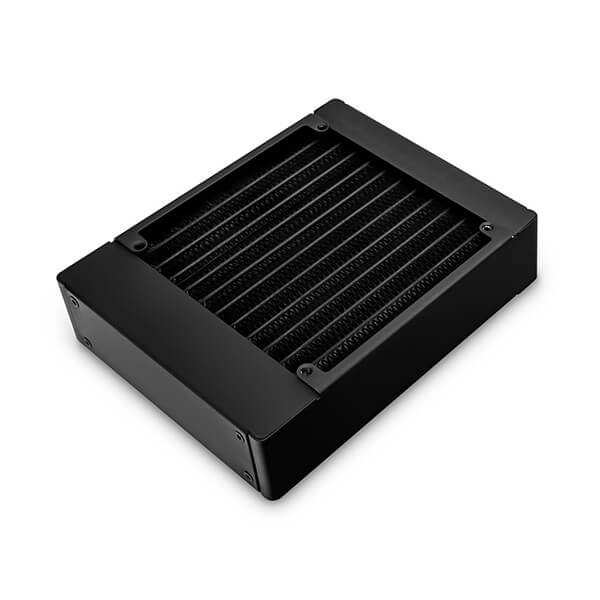

EK-CoolStream PE is a high-performance computer water-cooling radiator which combines EK's unique CSQ design with the latest radiator core engine. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across the entire fan operational range thus delivering exceptional performance at both low- and high airflow operation.

EK assured quality level, optimal price-performance ratio and unique minimalistic design make these EK-CoolStream PE series radiators a perfect choice for any computer water-cooled system.

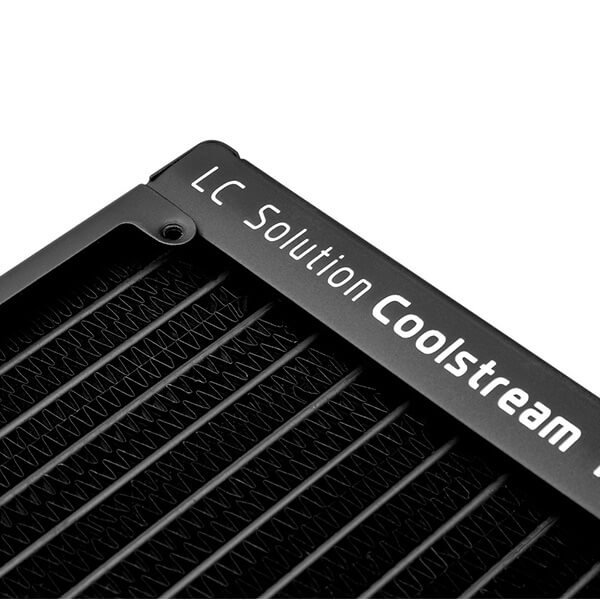

This radiator offers the best cooling capacity in the 40mm thick radiator class: Double stack copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation to even further increase the cooling performance.

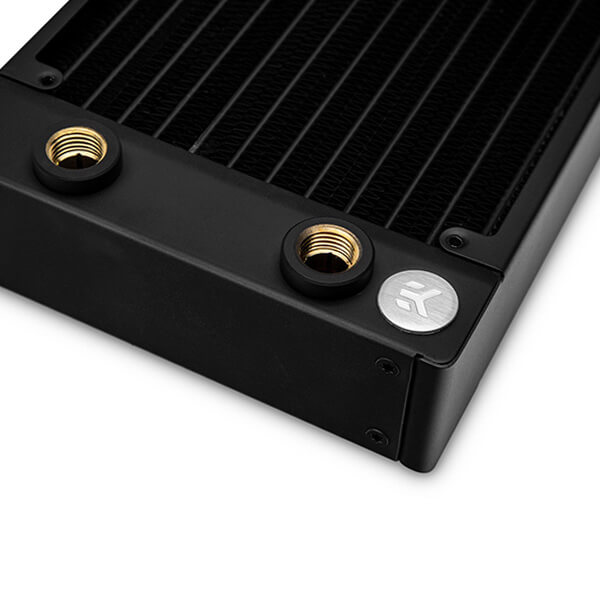

This product features two recessed G1/4 threaded ports with pre-installed extenders to allow any G1/4 threaded fitting to be used. EK recommends EK-ACF series compression fittings.

Specifications:

Technical details:	Material: Copper fins 90% copper tubing (H90) Brass chambers Aluminum housing

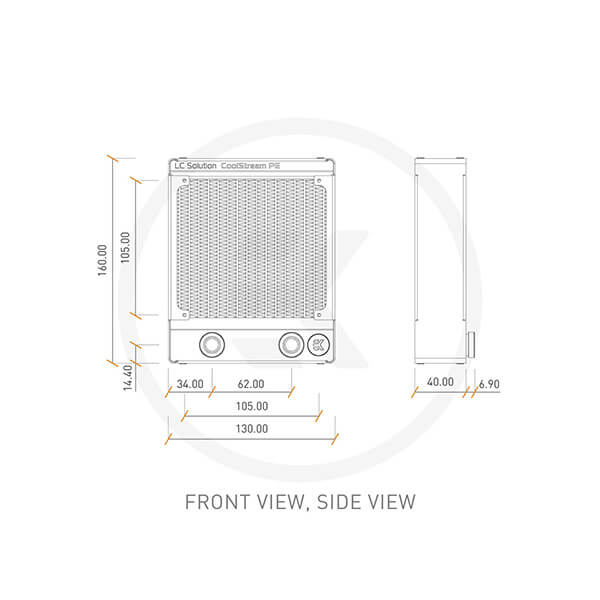

Radiator Dimensions:	Dimensions: 160 x 130 x 40mm (L x W x H) Weight: 0.53kg Liquid Capacity: ~130mL FPI: 20 (split fin) Port threads: 2x G1/4 Fan compatibility: any standard size 120x120x25mm fan; UNC 6-32 thread tapping Pressure tested: 1bar(g)
Threads	G1/4

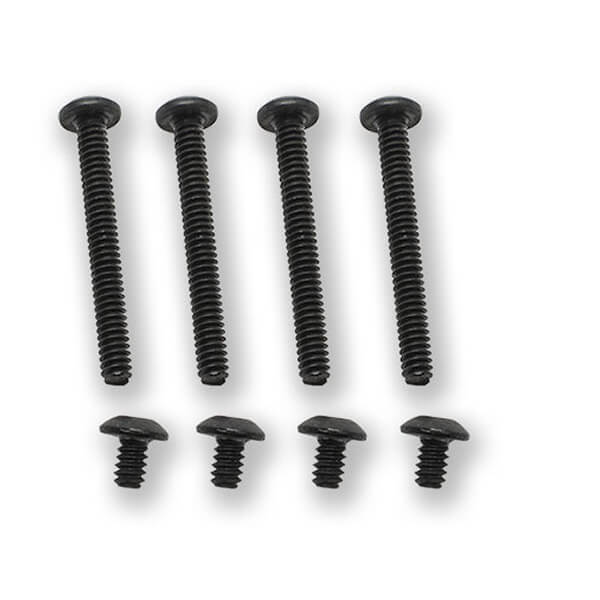

Package Contents	EK-CoolStream PE series radiator /w pre-installed G1/4 extenders flat-head UNC 6-32 screws (l=30mm) flat-head UNC 6-32 screws (l=5mm)
Warranty	2 Years
Note	Features, Price, Specifications are subject to change without notice. Images used for representation purposes only

PLEASE NOTE:

When using fans other than standard 120x120x25mm size please use appropriately long screws!

Use of the improperly long screws may result in piercing of the radiator core and irreparably damage the product. Such misuse is not covered by product warranty!
This product should NOT be installed with any aluminum Fluid Gaming parts!
