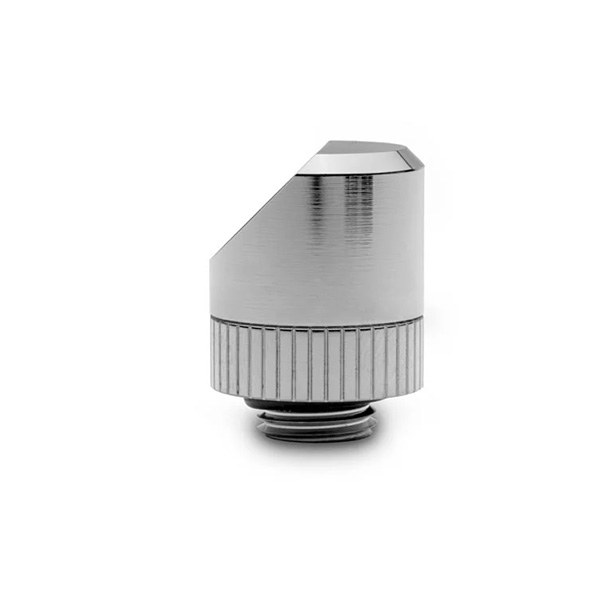

EK-Quantum Torque (Adapter Fitting) - Nickel is a revolvable angled (45°) adapter fitting with G1/4"" threads. In the form of a cut-off cylinder, it is very sturdy and there are zero movements in the revolvable joint. This Quantum Line adapter is made out of CNC machined brass with high-quality Nickel finish while the seal is made by quality rubber O-rings. It is an extremely secure and sturdy piece that will last for many future builds.

The adapter allows for connection of fitting with G1/4"" threads to extend tubing possibilities in your water cooled system allowing for easier bends and better accessibility.

Specifications

Technical specifications	- Material: made of nickel plated brass - Threads: * G1/4"" BSP; 4,5mm male thread length * G1/4"" BSP, 6mm female thread length - The outer diameter: 23mm - Installed height: 26mm - Sealed with high-quality NBR o-ring. - ROHS compliant!
Threads	G1/4
Important Info	- The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated fittings! EK is offering a selection of such products in the coolants section.
Warranty	2 Years
Note	*** Features, Specifications, Price are subject to change without notice.
