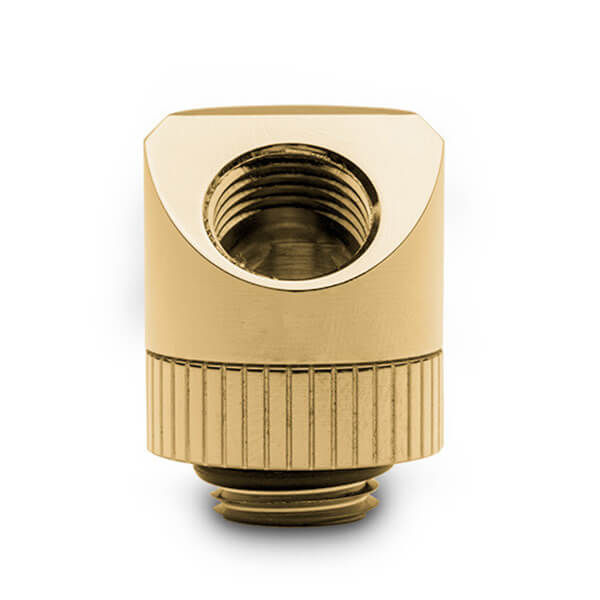

EK-Quantum Torque Rotary 45° – Gold

Details:

EK-Quantum Torque Rotary (Adapter Fitting) is a revolvable angled (45°) adapter fitting with G1/4″” threads. In the form of a cut-off cylinder, it is very sturdy and there are zero movements in the revolvable joint. This Quantum Line adapter is made out of CNC-machined brass and features a high-quality nickel plating followed by a second plating of real gold! The seal is made with quality EPDM O-rings. It is an extremely secure and sturdy piece that will last for many future builds.

The adapter allows for connection of fitting with G1/4″” threads to extend tubing possibilities in your water-cooled system allowing for easier bends and better accessibility.

EK-Quantum Torque series products received the prestigious iF Design Award. A robust and industrial aesthetic sets the Torque family apart by highlighting the precise manufacturing processes used to create them. In addition, enthusiasts can add a unique color ring to give a personal accent to the fitting line. The Torque family of fittings offers a secure and modular system of connections between liquid cooling components and tubing within a PC. Quantum Torque series products cover angled adapters, rotary and static extenders, splitters, G1/4″” plugs, drain valves, fittings, and much more.

Technical specifications:

– Material: Brass

– Finish: Gold

– Threads:

* G1/4″” BSP; 4.5mm male thread length

* G1/4″” BSP; 6mm female thread length

– The outer diameter: 23mm

– Installed height: 26mm

– Sealed with high-quality NBR o-ring
