Gigabyte UD750GM 80 Plus Gold Fully Modular Power Supply
UD750GMUltra DurableMain Japanese capacitorsEnhanced thermal solution120mm smart hydraulic bearing (HYB) fanOVP/OPP/SCP/UVP/OCP/OTP protection80 PLUS Gold certifiedFully modular designPowerful single +12V railCompact design5 years warranty (Adjuste
Stock Available in Warehouse WBV
Original price was: ₹16,200.00.₹8,483.40Current price is: ₹8,483.40.
UD750GM
- Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 80 PLUS Gold certified
- Fully modular design
- Powerful single +12V rail
- Compact design
- 5 years warranty (Adjusted according to different regions)
Â
|
Specification |
|
|
Model |
GP-UD750GM |
|
Type |
Intel Form Factor ATX 12V v2.31 |
|
PFC |
Active PFC (>0.9 typical) |
|
Input Voltage |
100-240 Vac (full range) |
|
Input Current |
12-6A |
|
Input Frequency |
6‎0-50 Hz |
|
Output Capacity |
7‎50W |
|
Dimension |
1‎50 x 140 x 86 mm |
|
Fan Type |
120mm Hydraulic Bearing(HYB)fan |
|
80 PLUS |
Gold |
|
Efficiency |
90% at typical load |
|
MTBF |
>100,000 hours |
|
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
|
Power Good Signal |
100-150ms |
|
Hold Up Time |
>16ms |
|
Cable Type |
Flat, All black |
|

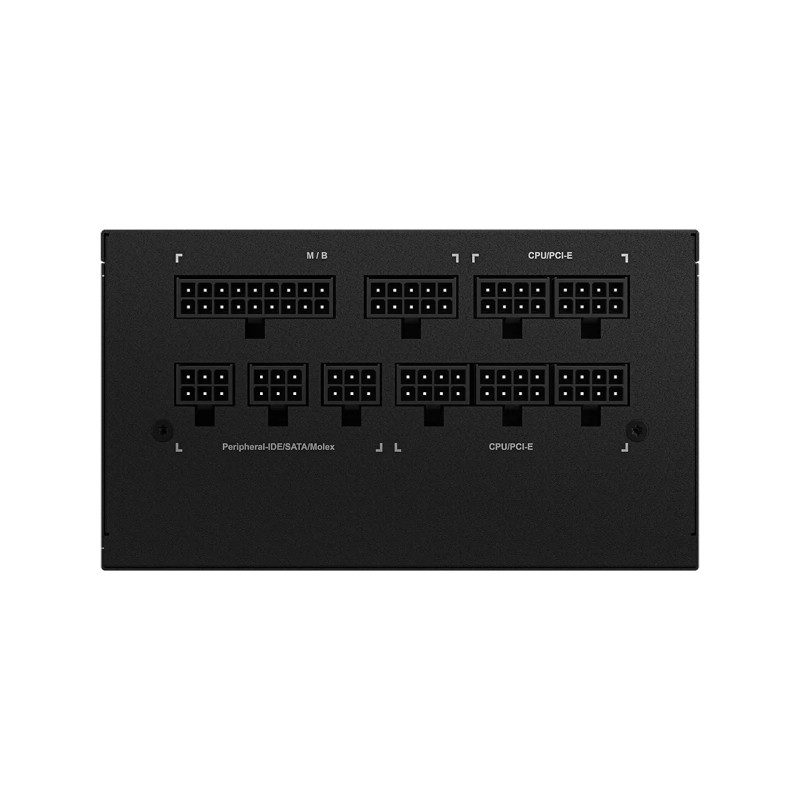

Connectors |
ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |
|
Warranty |
5 years warranty |
|
Note* |
Price, feature and specifications are subject to change without notice. |
| Weight | 2 kg |
|---|---|
| Dimensions | 16 × 15 × 9 cm |
| model | GP-UD750GM |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6A |
| Input Frequency | 6‎0-50 Hz |
| Output Capacity | 7‎50W |
| Dimension | 1‎50 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing(HYB)fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1CPU/EPS 4+4 Pin x 2 : 600mm*2PCI-e 6+2 Pin x 4 : 600mm+150mm*2SATA x 8 : 600mm+150mm+150mm+150mm*24 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |
| Warranty | 5 years warranty |
| Note* | Price, feature and specifications are subject to change without notice. |
