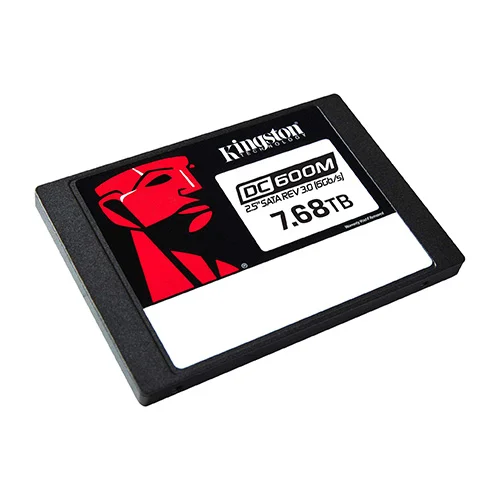

Kingston DC600M 7.68TB Enterprise SSD

Features:

• Designed for data center environments
• Hardware-based power loss protection
• Latency and IOPS consistency
• Capacities 7.68TB

Kingston’s DC600M SSDs is 4th generation data center SATA 3.0, 6Gbps SSDs utilizing 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M is designed to protect data against unexpected power failure and to ensure the drive will successfully re-initialize on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers, and cloud service providers.

Form factor: 2.5 inch

Interface: SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)

Capacities: 7.68TB

NAND: 3D TLC

DRAM Cache: Yes

Sequential read/write: 7.68TB – 560MBs/530MBs

Steady-state 4k random read/write: 7.68TB – 94,000/34,000 IOPS

Hot-plug capable: Static and dynamic wear levelling

Enterprise SMART tools: Reliability tracking, usage statistics, life remaining, wear levelling, temperature

Hardware-based power loss protection: Yes

Endurance (TBW): 7.68TB – 14016TBW

Power consumption: Idle: 1.30W / Average: 1.45W / Max read: 1.6W / Max write: 3.6W

Storage temperature: -40℃ ~ 85℃

Operating temperature: 0℃ ~ 70℃

Dimensions: 69.9mm x 100mm x 7mm

Weight: 92.34g

Vibration operating: 2.17G Peak (7–800Hz)

Vibration non-operating: 20G peak (10–2000Hz)

MTBF: 2 million hours

UBER: ≤10 -17
