Features:

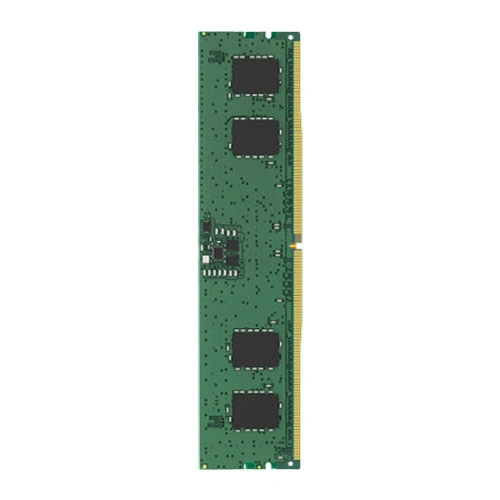

8GB 1Rx16 1G x 64-Bit PC5-5600 CL46 288-Pin DIMM

This document describes Value RAM's KVR56U46BS6-8 is a 1G x 64-bit (8GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
• CL(IDD): 46 cycles
• Row Cycle Time (tRCmin): 48ns(min.)
• Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min.)
• Row Active Time (tRASmin): 32ns(min.)
• UL Rating: 94 V - 0
• Operating Temperature: 0°C to +85°C
• Storage Temperature: -55°C to +100°C
